Anonymised UserSync Integration

Purpose

UserSync enables partners to safely associate their user identifiers with Anonymised’s internal UUIDs, allowing deterministic identity mapping while preserving user privacy.

Overview

• Mechanism: Partners write their user ID into a localStorage key called anon-hndshk.

• Anonymised tag: Runs on the page, reads anon-hndshk and, if present and consent conditions are met, calls the /v3/usersync endpoint.

• Identity graph ingestion: The call links the partner ID, the Anonymised UUID, and the client ID (ID owner) for deterministic mapping.


Flow diagram

Partner Code → writes user_id → localStorage: anon-hndshk
           ↓
Anonymised Tag → checks consent & bearer token
           ↓
POST /v3/usersync → partner_user_id + anonymised_uuid
           ↓
Identity Graph stores mapping: client_id | partner_user_id | anonymised_uuid

Preconditions

Before a partner ID can be ingested:

1. Anonymised tag must be active on the page.
   Ensures safe execution and access to anon-hndshk.

2. User consent must be granted (TCF / GDPR).
   Our tag will not read or transmit identifiers without consent.

3. Bearer token must be present for the logged-in user.
   Links the UserSync ingestion to a deterministic Anonymised UUID.

Steps for partner integration

Step 1: Implement partner-side code

• Generate or retrieve the partner’s user ID (e.g., CRM ID, hashed email).

• Write the value to localStorage under the key anon-hndshk, for example;

  CODE

  // Example: Partner writes their ID to localStorage
  (function() {
      const partnerUserId = 'partner_user_12345'; // hashed or anonymised
      localStorage.setItem('anon-hndshk', partnerUserId);
  })();

Step 2: Ensure execution before Anonymised tag

• Your code should execute before the Anonymised tag is loaded, else we will pick up the partner ID on the subsequent pageview.

• This ensures our tag can read the anon-hndshk value and process it correctly.

Step 3: Do not attempt to send IDs directly

• The partner code should never call /v3/usersync directly.

• All ingestion is handled via the Anonymised tag, ensuring privacy compliance and authentication.

Behaviour of the Anonymised Tag

1. Checks for the presence of anon-hndshk in localStorage.

2. Confirms that:

   • The user has given consent.

   • A bearer token exists for the session.

3. Sends a POST request to /v3/usersync containing:

   • The IDs to be matched

   • The owner of the Partner ID

4. The endpoint maps:

   CODE

   client_id (assigned by Anonymised to the client) | partner_user_id | anonymised_uuid

5. The mapping can then be used to build membership audiences for targeting. See API documentation.

Key considerations

• Privacy first: Only identifiers for consenting users are ingested.

• Deterministic linking: Partner IDs for the same user are mapped to a single Anonymised UUID across the portfolio.

• Token validation: The bearer token ensures that ingestion is authorised and cannot be spoofed.

• No raw IDs shared externally: Partner IDs are only linked internally and never exposed outside the system.

Live example

1. Navigate to https://blog-website-for-cmp-test-lwvpr3pb6a-ew.a.run.app/

2. Accept the consent terms

3. If using Chrome, you can ignore this step, else click to open another tab and navigate back to the original tab.

4. Open Dev > Console and paste/execute the following code:

(function () {
    // Helper: read a cookie by name
    function getCookie(name) {
        const match = document.cookie.match(new RegExp('(?:^|; )' + name.replace(/([.$?*|{}()[\]\\/+^])/g, '\\$1') + '=([^;]*)'));
        return match ? decodeURIComponent(match[1]) : null;
    }

    // Helper: extract GA4 Client ID from _ga cookie
    function getGaClientId() {
        const gaCookie = getCookie('_ga');
        if (!gaCookie) return null;

        // _ga format: GA1.2.XXXXXXXXXX.YYYYYYYYYY
        const parts = gaCookie.split('.');
        if (parts.length < 4) return null;

        // Client ID = last two sections joined with a dot
        return parts[2] + '.' + parts[3];
    }

    // Helper: generate a random GUID
    function generateGuid() {
        return 'xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx'.replace(/[xy]/g, function (c) {
            const r = Math.random() * 16 | 0;
            const v = c === 'x' ? r : (r & 0x3 | 0x8);
            return v.toString(16);
        });
    }

    // Main
    const clientId = getGaClientId();
    const guid = generateGuid();

    if (clientId) {
        const combined = `${clientId}:${guid}`;
        localStorage.setItem('anon-hndshk', combined);
    }
})();

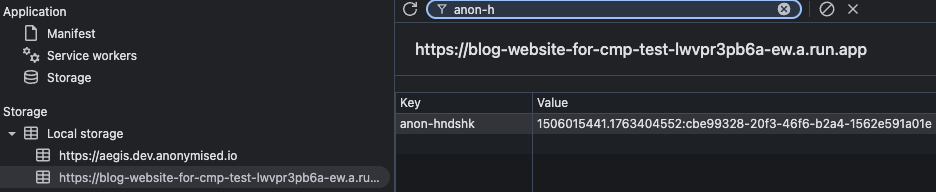

5. Navigate to Dev > Application and check that the local storage key anon-hndshk is present and populated.

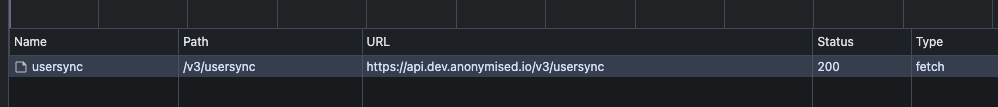

6. Navigate to Dev > Network and check that the call to /v3/usersync has been made.
